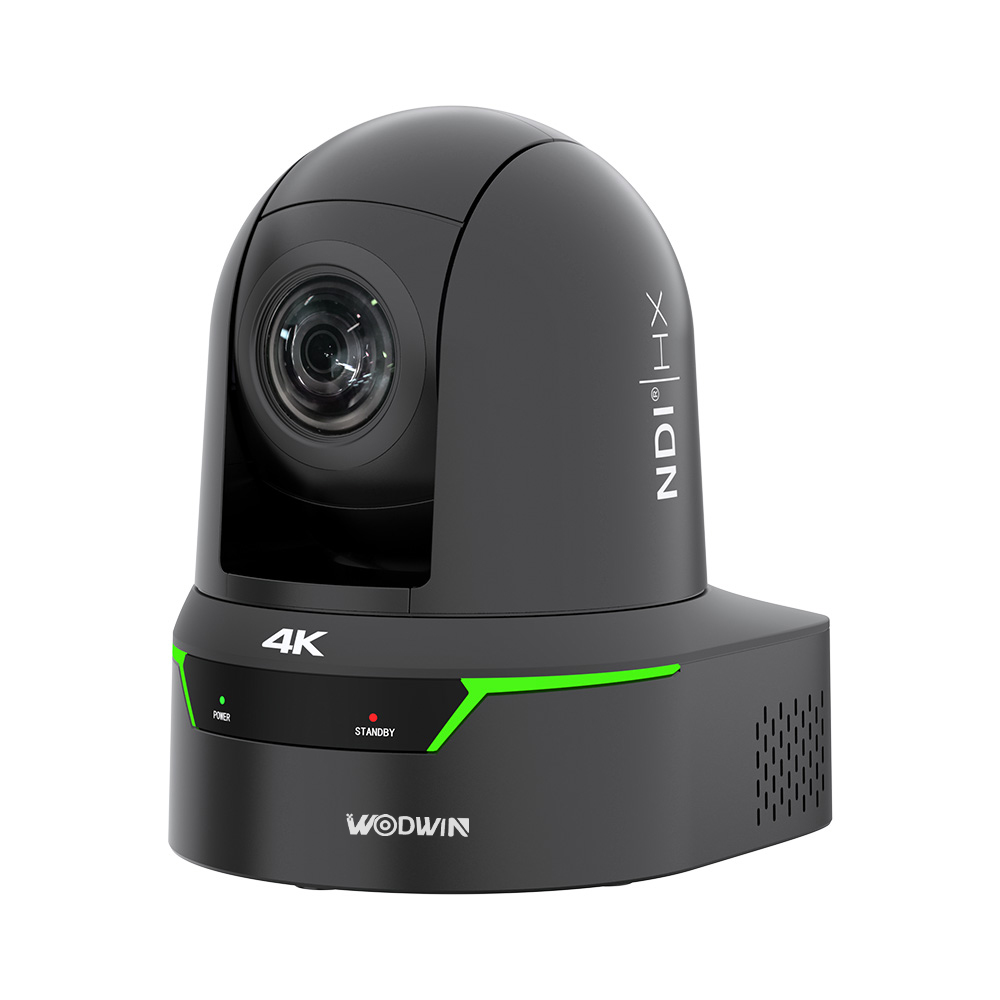

Product Model: WIN-JK71FN

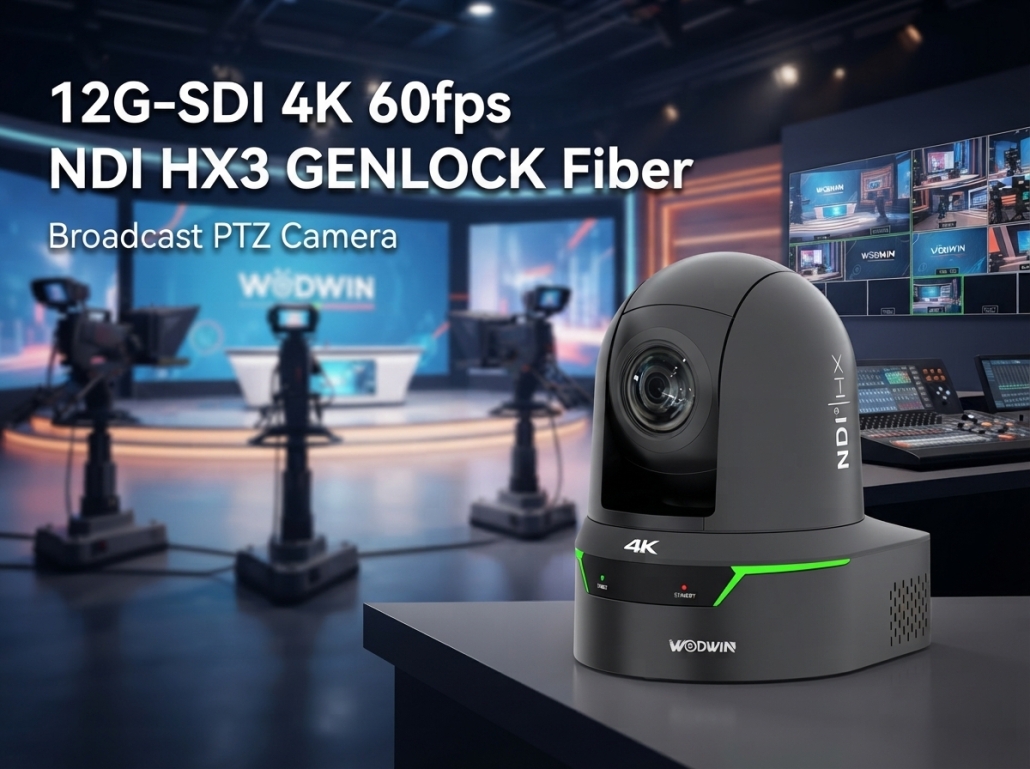

NDI|HX3 12G-SDI 25X 4K 60FPS PTZ CAMERA – WIN-JK71FN

WODWIN WIN‑JK71FN Broadcast PTZ Camera

WODWIN WIN‑JK71FN is the new 2026 professional 4K 60fps NDI PTZ broadcast camera with 12G‑SDI and 25X optical zoom. While built for premium live production, it also suits versatile scenarios, including studio broadcasting, church worship live streaming, remote learning, sports events and on‑site event recording. Even under challenging lighting conditions, the premium SONY 1/1.8’’ CMOS sensor delivers sharp 8.3MP Ultra‑HD and smooth 4K@60FPS output with low‑noise performance.

Furthermore, it adopts advanced NDI®|HX3 protocol; hence it achieves low‑latency, lossless IP streaming for reliable live broadcast workflows. In addition, this 4K PTZ camera offers an extensive movement range with 348° pan and 120° tilt. Accordingly, you can capture full‑scene as well as dynamic multi‑angle shots for different shooting tasks. Meanwhile, the silent PTZ motor guarantees unobtrusive operation during live sessions.

Apart from that, it comes with comprehensive broadcast‑grade interfaces including 12G‑SDI, 3G‑SDI, HDMI2.0, POE‑LAN, Gen‑Lock and SFP28 FIBER. As a result, it works not only with legacy broadcast devices but also modern IP‑based virtual‑studio systems.

Most importantly, it supports smart AI auto‑tracking, auto‑framing, gesture recognition and Free‑D spatial‑data output. Consequently, it drastically cuts manual camera control work, which makes this NDI PTZ camera a perfect choice for virtual production, AR production and professional live‑streaming projects.

SEND US INQUIRY

12G-SDI 4K 60FPS Broadcast PTZ Camera

4K60 PTZ Broadcasting Camera WIN-JK71FN:

SONY 1/1.8” CMOS Sensor, 8.3MP, 4K@60FPS Ultra‑HD
25X Optical Zoom, built‑in NDI|HX3 for efficient IP streaming
Rich Interfaces:12G‑SDI,3G‑SDI,HDMI2.0,POE‑LAN,Gen‑Lock,FIBER(SFP28)
PTZ Movement: Pan 348°, Tilt 120° wide‑angle coverage
AI Tracking, Auto‑Framing, Gesture Recognition, Free‑D virtual‑studio tracking
OLED screen for IP viewing, Tally Light, superior low‑light capability

UHD 4K/60FPS, Sony 1/1.8 Inches CMOS Sensor

WIN-JK71FN Featuring the SONY 1/1.8” 8.3MP CMOS sensor,
It captures crisp 3840 × 2160 Ultra‑HD video at 4K60p/50p for fluid, high‑quality motion shooting.
Super High video quality,Good for live streaming and broadcasting

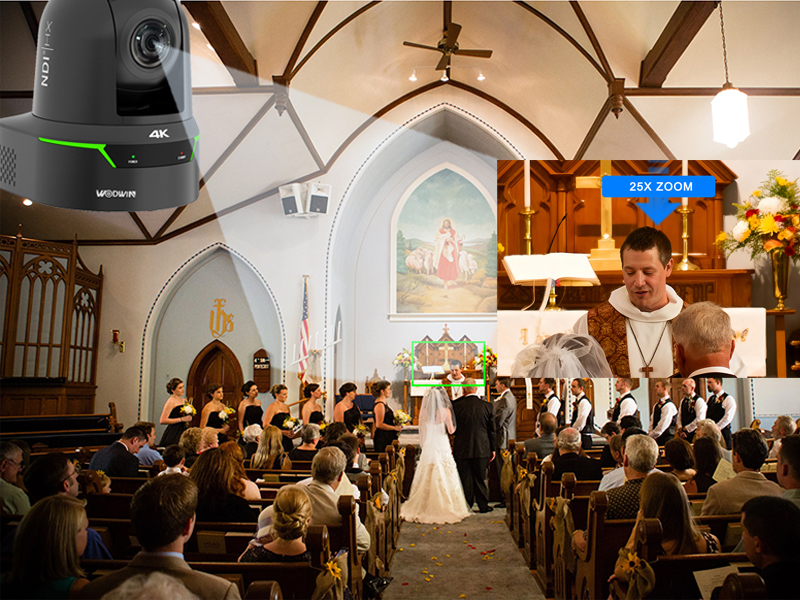

PTZ Camera with 25X Optical Zoom

WIN-JK71SN 4K NDI PTZ Camera

25× optical zoom delivers sharp images even at high magnification.
With a maximum horizontal viewing angle of 59.2°,
the WIN‑JK71FN 4K NDI PTZ camera adapts to large‑space scenarios including live event production, large‑auditorium, TV Studio, Sports, Churchs, and classroom blackboard‑shot recording.

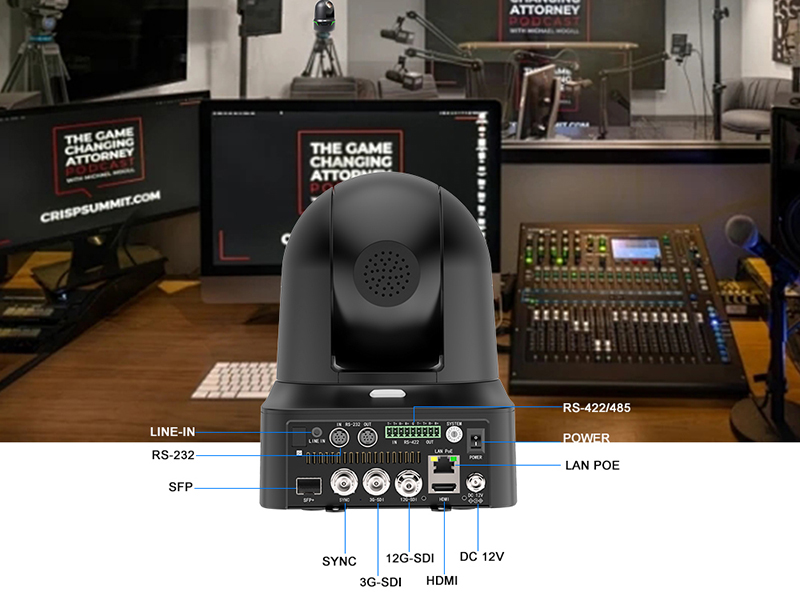

12G-SDI/GEN-LOCK/FIBER Camera Output

WODWIN 4K60 Camera WIN-JK71FN is with rich Interfaces such as

12G‑SDI, 3G‑SDI, HDMI2.0, LAN ports,

Gen‑Lock, FIBER(SFP28), POE

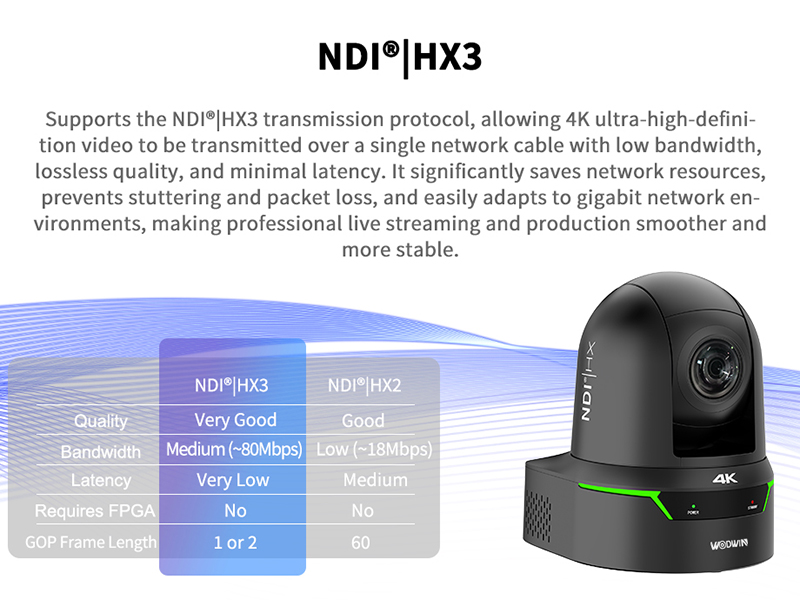

NDI|HX3 4K UHD Camera

WIN-JK71FN 4K PTZ Camera Equipped with NDI®|HX3 protocol,
It transmits high‑definition video, audio and camera control signals via one single network cable,
Achieving reliable low‑latency IP streaming for live production.

4K Camera with AI tracking/Auto framing/Gesture Recognition

WIN-JK71FN 4K Camera support AI tracking.

Multi‑mode AI algorithm enables intelligent tracking covering Single‑Person Tracking,
Multi‑Person Tracking,
Area Tracking and Hybrid Tracking.
What’s more, It performs automatic framing for lectures, meetings and classrooms to cut down manual operations.
Besides, three gesture controls are available to activate/deactivate AI tracking and switch tracking targets conveniently.

WIN-JK71FN-AI-Tracking-4K-PTZ-camera-GENLOCK

4K PTZ Camera with G-LOCK Fucntion

WIN-JK71FN 4K NDI PTZ Camera is with GENLOCK, G-lock function.

This gen‑lock capability facilitates system integration within multi‑camera broadcast setups.
It allows multiple cameras to capture and transmit video with a common reference clock for precise video synchronization, and smooth scene switching.

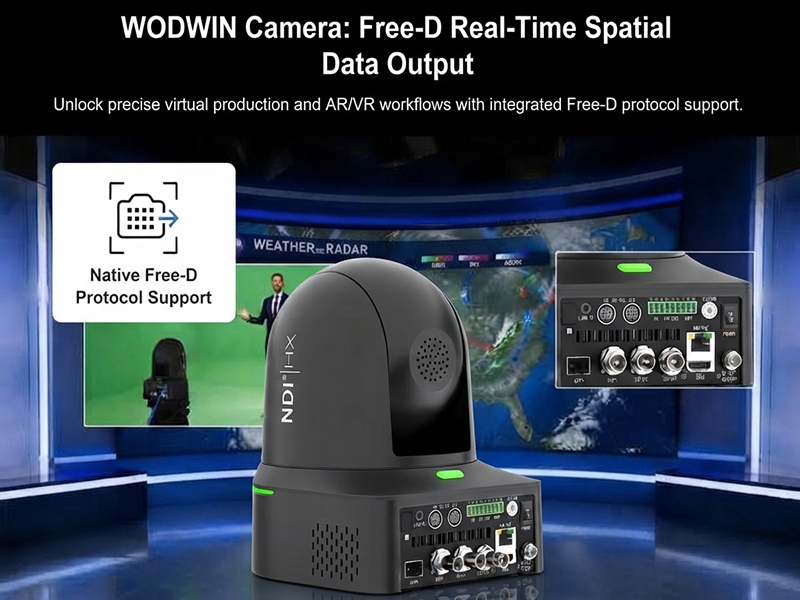

4K Camera with Free-D Protocol

WODWIN PTZ 4K Camera WIN-JK71FN is built‑in Free‑D protocol.

It enables real‑time camera spatial data output, allowing accurate synchronization and control of dynamic shooting angles and perspectives.
It provides reliable positioning data for virtual studios, AR expansion, and mixed reality production.
It ensuring seamless integration between real and virtual environments and enhancing overall immersive production quality.
Also it Supports YUY2, MJPG, H.264/H.265 encoding & ONVIF, SRT, RTSP, RTMP(S)

WIN-JK71FN-AI-Tracking-4K-PTZ-camera-FREE-D

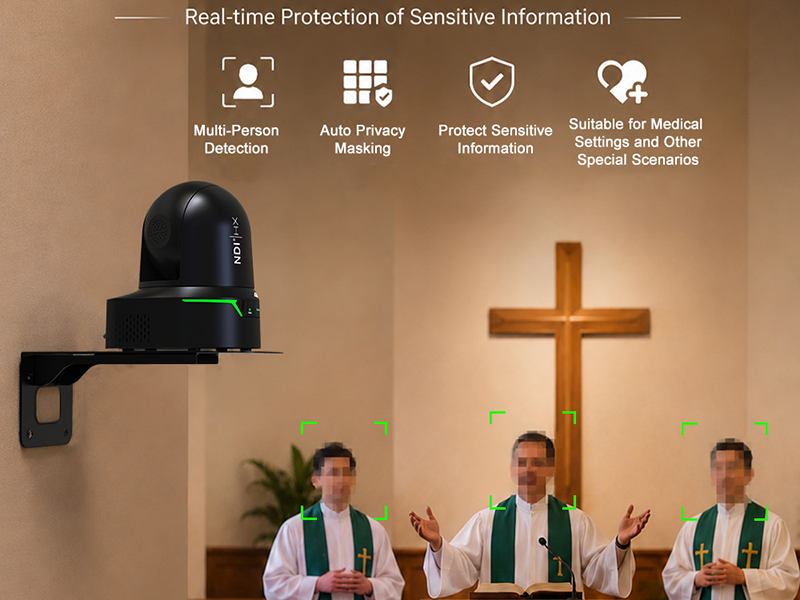

WIN-JK71FN-AI-Tracking-4K-PTZ-camera-PRIVACY-MASK

Real Time Privacy Mask Function for WIN-JK7FN

WIN-JK71FN 4K Camera is with automatic mosaic masking for head areas when required.

Real‑time multi‑face detection supports automatic head‑area mosaic masking upon demand,
Which helping protect personal privacy during live streaming and recording.

OLED Screen and Tally Light

WODWIN NDI PTZ 4K Camera WIN-JK71FN is with OLED Screen.

With it can shows the IP of the PTZ camera.Displays real-time information including the camera’s IP address and current HDMI output
resolution.
And with two tally light can turn red and green, which will be easily for operation.

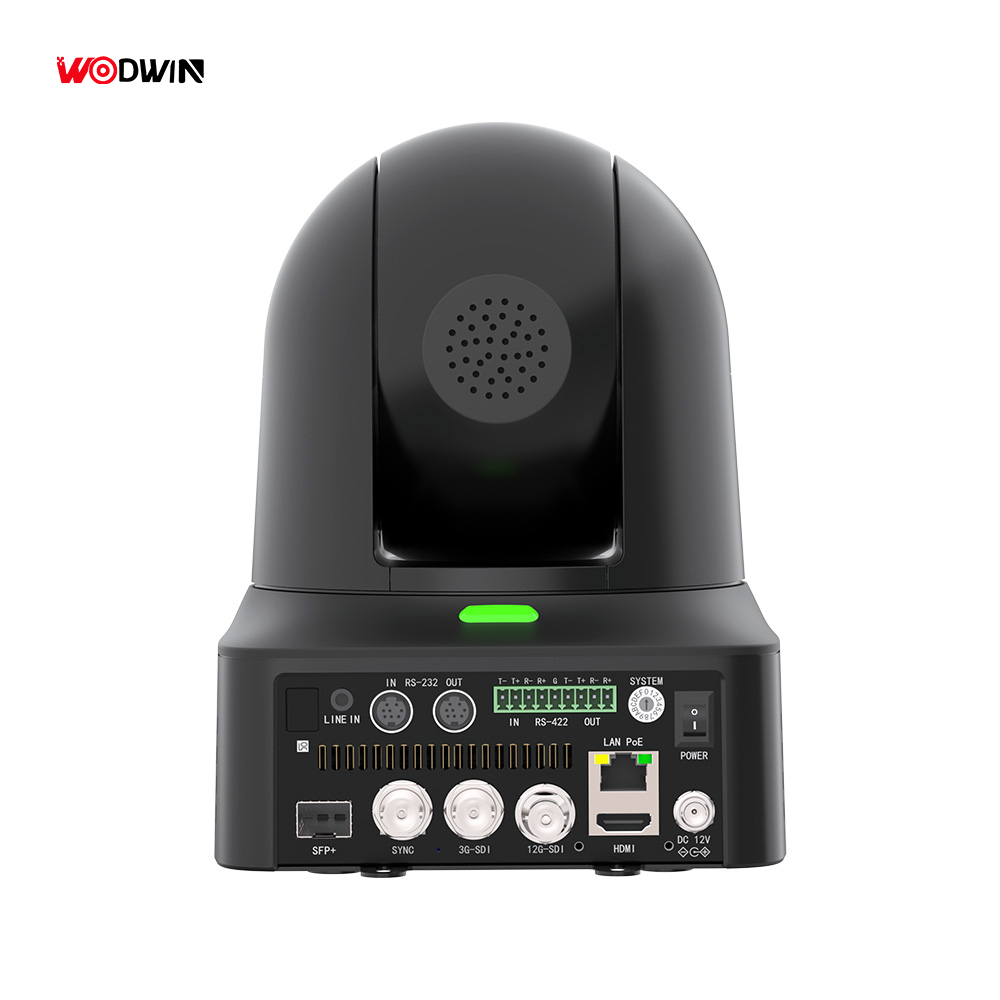

Dual 12G-SDI Output, HDMI 2.0,USB3.0, LAN

This 4K PTZ Camera is with 12G-SDI, 3G-SDI, HDMI2.0, Lan, USB3.0 output.They all support NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / SRT.

Supports VISCA (including VISCA Over IP), PELCO P/D protocols, and supports automatic identification protocols.
Different interfaces support multiple video compression formats such as YUY2, H265, MJPG, and H264

Multi-Application

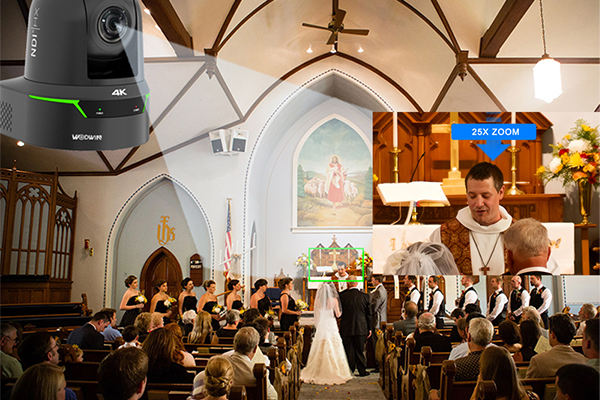

WIN-JK71FN-25X- 4K-PTZ-Camera-for-Church

For-Church-Live Streaming

WIN-JK71S 4K 25X SDI PTZ CAMERA for Live Streaming

Live Broadcasting

For Telemedicine

TECHNICAL PARAMETERS

Camera parameters
WIN-JK71FN the NDI\|HX3 4K60 25X 12G-SDI Broadcasting camera
Sensor		1/1.8-inch SONY CMOS sensor, approximately 8.29million effective pixels
Zoom	Optical zoom	30X
	Digital zoom	16X
Lens		f=6.91(wide)~214.64mm(tele)，F1.35~F4.6
Horizontal field of view		59°(W)~1.98°(T)
Vertical field of view		34.14°(W)~1.12°(T)
Output format	HDMI	38402160 p60/59.94/50/30/29.97/25；19201080 p60/59.94/50/30/29.97/25；1280720 p60/50；19201080 i60/59.94/50
	3G-SDI	19201080 p60/59.94/50/30/29.97/25；1280720 p60/50；1920*1080 i60/59.94/50
	USB	MJPEG: 38402160, 25601440, 19201080, 1280720, 960540, 480270, 384216, 320180, 256*144
		YUY2: 19201080, 1280720, 960540, 640360, 480270, 384216, 320180, 256144
		NV12: 19201080, 1280720, 960540, 640360, 480270, 384216, 320180, 256144
Gimbal

Preset		Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10%
Gimbal Acceleration Curve		Gentle，Standard，Swift
Horizontal rotation angle		-171°～ +171°
Vertical rotation angle		-90°～ +90°
Horizontal rotation speed		0.01°～ 180°/S
Vertical rotation speed		0.01°～ 180°/S
Image Parameters

Noise reduction		2D & 3D
Exposure		Automatic, Manual, Aperture Priority, Shutter Priority
White Balance		Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature
Low light		0.1Lux
Anti-flicker		Off,50Hz,60Hz
Focusing method		Automatic, Manual
Gamma		Standard, Linear, Pattern, Custom
Inversion/Image Freeze		Support
Backlight compensation		Support
Flip/Mirror		Support
Defog		Support
Shutter		1/50S ～ 1/10000S
S/N Ratio		≥50dB
Online streaming

Video encoding format		H.264, H.265,MJPEG
Rate Control		Variable bit rate, constant bit rate
Bitrate		Stream0 38402160, 19201080, 1280*720
		Stream1 640*360
		Stream2 19201080, 1280720
Supported Protocol		TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, VISCA Over IP, Free D，NDI（optional）
Audio information

Compression Standard		AAC
Audio Bitrate		128kbps
AI composition

Smart Tracking		Single-person tracking, multi-person tracking, Zone tracking, hybrid tracking, gesture recognition
Gesture Recognition		AI On, AI Off, Switch Target, Zoom In, Zoom Out
Composition size		Half body / Full body
Composition mode		Custom, Center, Left, Right
Composition position		Current position, preset position, initial position
Pan Lock		Support(Only Single-person tracking)
Tilt Lock		Support(Only Single-person tracking)
Zoom Lock		Support(Only Single-person tracking)
Input/Output

HDMI port		HDMI: Version 2.0 *1 channel
USB port		USB 3.0, Type-B port *1 channel
SDI port		3G-SDI*1 channel
Communication Interface		RS422:9 Phoenix connector,maximum distance 1200 meters，VISCA/Pelco-D/Pprotocol 1 channel； RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/P protocol 1 channel
Network Interface		RJ45: 1000M adaptive Ethernet port ×1 channel (Supports PoE+ (IEEE 802.3at))
Audio Interface		3.5mm Line In audio port ×1 channel
Power connector		IEC 60130-10 Type A
Basic Parameters

Input voltage		DC 12V
Input current		Up to 1.5A
Operating Temperature		0～40℃
Storage Temperature		-10～60℃
Power consumption		Up to 18W
Color		Black
Specifications		158191208mm
Weight		1.9KG
Accessory List		DC12V power adapter, IR remote control, User manual, HDMI cable (optional), HDMI bracket, USB 3.0 video cable, wall mount/ceiling mount bracket (choose one of the two)
