| Camera parameters |

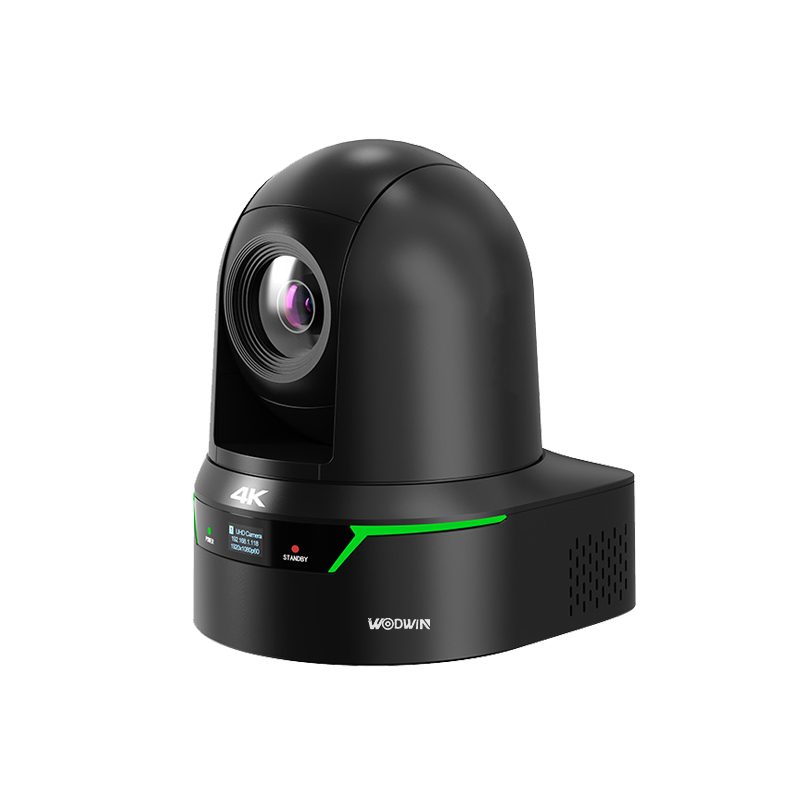

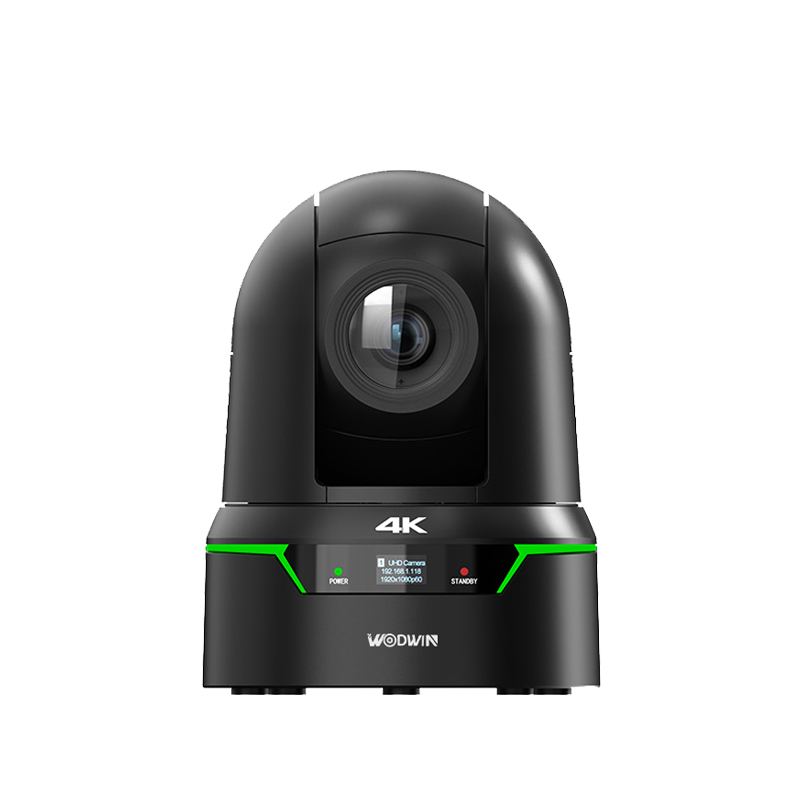

| WIN-JK71S3 25X 4K60FPS PTZ CAMERA WITH 3G-SDI PORT |
| Sensor |
1/1.8-inch SONY CMOS sensor, approximately 8.29 million effective pixels |
| Zoom |
Optical zoom |
25X |
|
Digital zoom |
16X |
| Lens |
f=7.1(wide-angle)~171.95mm(telephoto)，F1.61~F5.19 |
| Horizontal field of view |
59.2°(W)~2.5°(T) |
| Vertical field of view |
34.6°(W)~1.4°(T) |
| Output format |
HDMI |
3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/59.94/50；1920*1080 i60/59.94/50 |
|
3G-SDI |
1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/59.94/50；1920*1080 i60/59.94/50 |
| Gimbal |
|
| Preset |
Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10% |
| Gimbal Acceleration Curve |
Gentle，Standard，Swift |
| Horizontal rotation angle |
-174°～ +174° |
| Vertical rotation angle |
-30°～ +90° |
| Horizontal rotation speed |
0.01°～ 180°/S |
| Vertical rotation speed |
0.01°～ 180°/S |
| Image Parameters |
|
| Noise reduction |
2D & 3D |
| Exposure |
Automatic, Manual, Aperture Priority, Shutter Priority |
| White Balance |
Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature |
| low light |
0.1Lux |
| Anti-flicker |
Off, 50Hz, 60Hz |
| Focusing method |
Automatic, Manual |
| Gamma |
Standard, Linear, Pattern, Custom |
| Inversion/Image Freeze |
Support |
| Backlight compensation |
Support |
| Flip/Mirror |
Support |
| Defog |
Support |
| Shutter |
1/60S ～ 1/10000S |
| Online streaming |
|
| Video encoding format |
H.264, H.265,MJPEG |
| Rate Control |
Variable bit rate, constant bit rate |
| Bitrate |
Stream 0 3840*2160, 1920*1080, 1280*720 |
|
Stream 1 640*360 |
|
Stream 2 1920*1080, 1280*720 |
| Supported Protocol |
TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, VISCA Over IP, Free D, NDI（Optional） |
| Audio information |
|
| Compression Standard |
AAC |
| Audio Bitrate |
128kbps |
| AI composition |
|

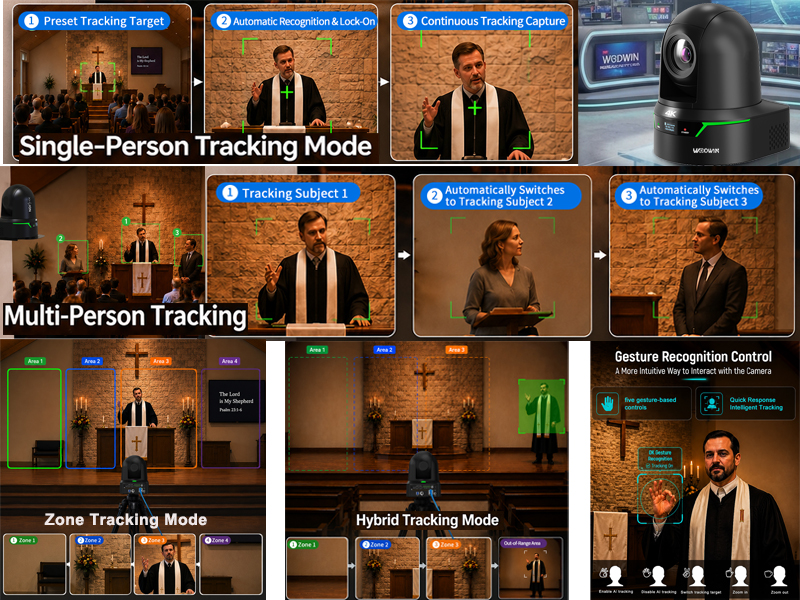

| Smart Tracking |
Single-person tracking, multi-person tracking, Zone tracking, hybrid tracking, gesture recognition |
| Gesture recognition |
Turn on/off, switch target,Zoom In,Zoom Out |
| Composition size |
Half body / Full body |
| Composition mode |
Custom, Center, Left, Right |
| Composition position |
Current position, preset position, initial position |
| Pan Lock |
Support(Only Single-person tracking) |
| Tilt Lock |
Support(Only Single-person tracking) |
| Zoom Lock |
Support(Only Single-person tracking) |

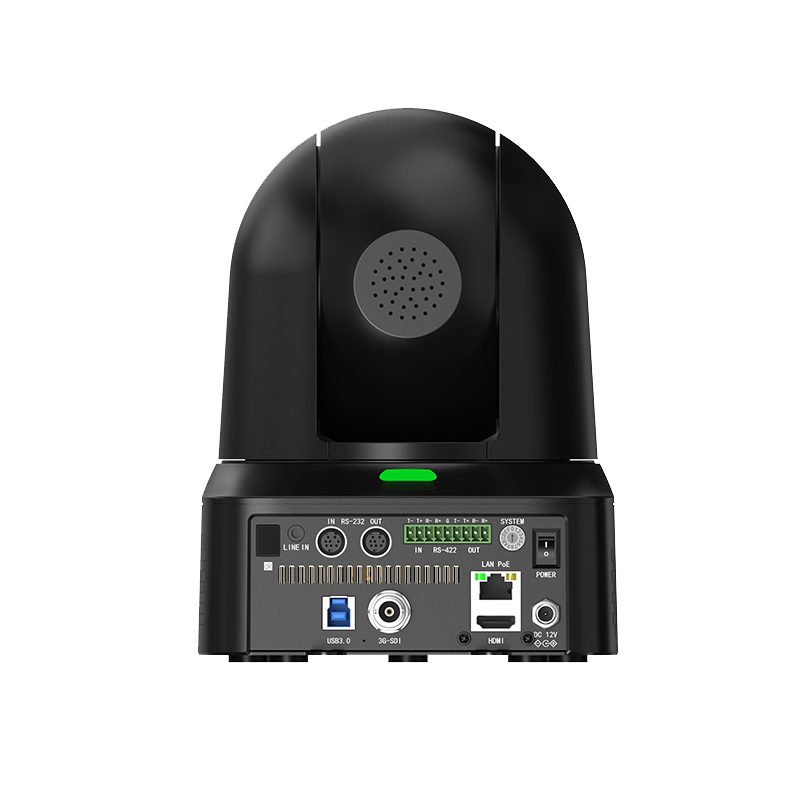

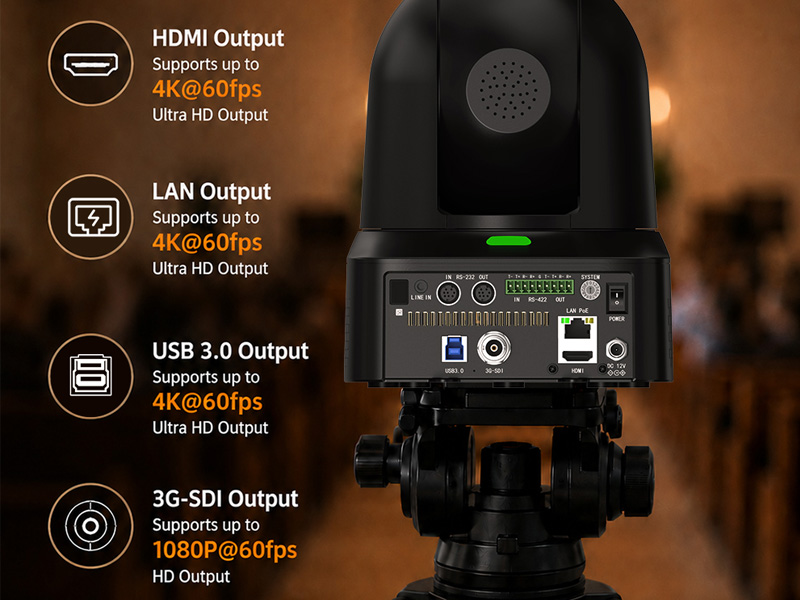

| Input/Output |
|
| HDMI port |
HDMI: Version 2.0 *1 channel |
| USB port |
USB3.0，Type-B port *1 channel |
| SDI port |
3G-SDI*1 channel |
| Communication Interface |
RS422:9 Phoenix connector,maximum distance 1200 meters，VISCA/Pelco-D/Pprotocol *1 channel； RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/P protocol *1 channel |
| Network Interface |
RJ45: 1000M adaptive Ethernet port ×1 channel |
| Audio Interface |
3.5mm Line In audio port ×1 channel |
| Power connector |
IEC 60130-10 Type A |
| Basic Parameters |
|
| Input voltage |
DC 12V |
| Input current |
Up to 1.5A |
| Operating Temperature |
0～40℃ |
| Power consumption |
Up to 18W |
| Color |
Black、White（Optional） |
| Specifications |
158*193*208mm |
| weight |
1.9KG |
| Accessory List |
DC 12V power adapter、IR remote control、 user manual、RS-232 serial cable (optional)、HDMI cable (optional)、HDMI bracket、USB 3.0 video cable、wall mount/ceiling mount bracket (choose one) |
