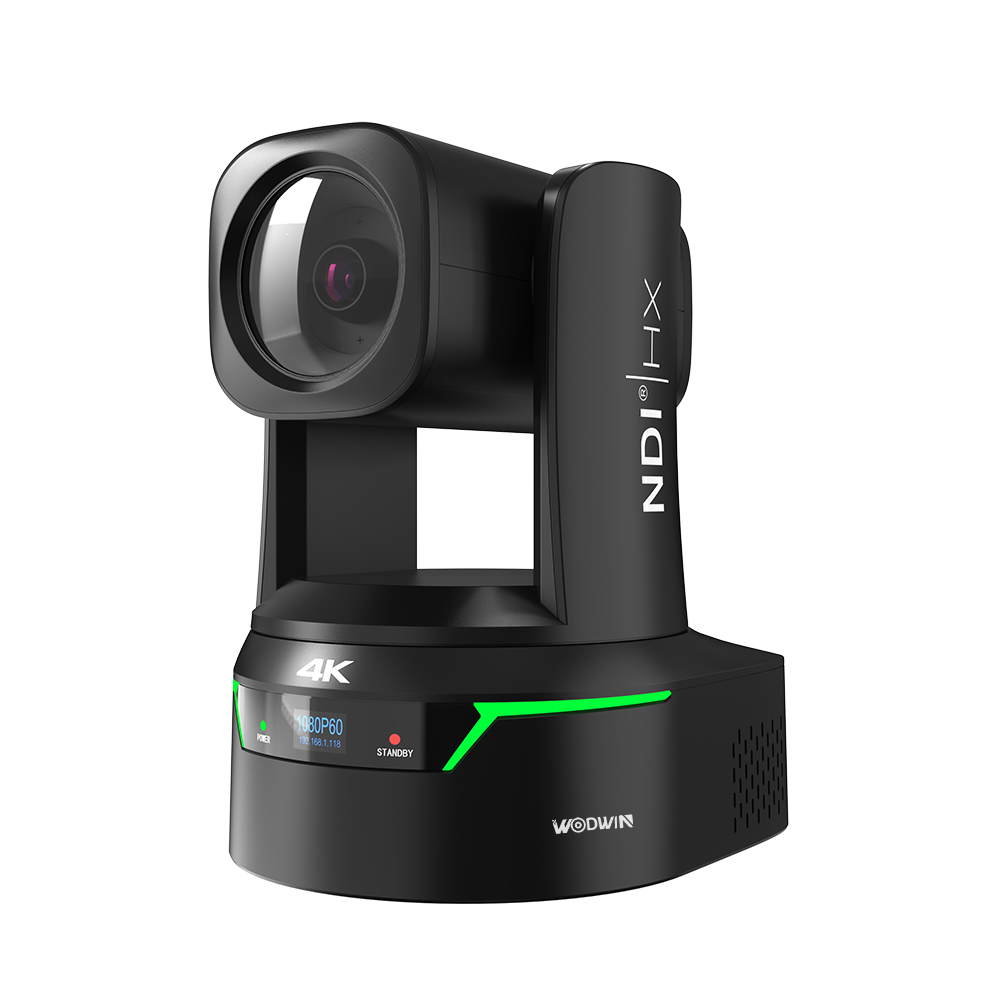

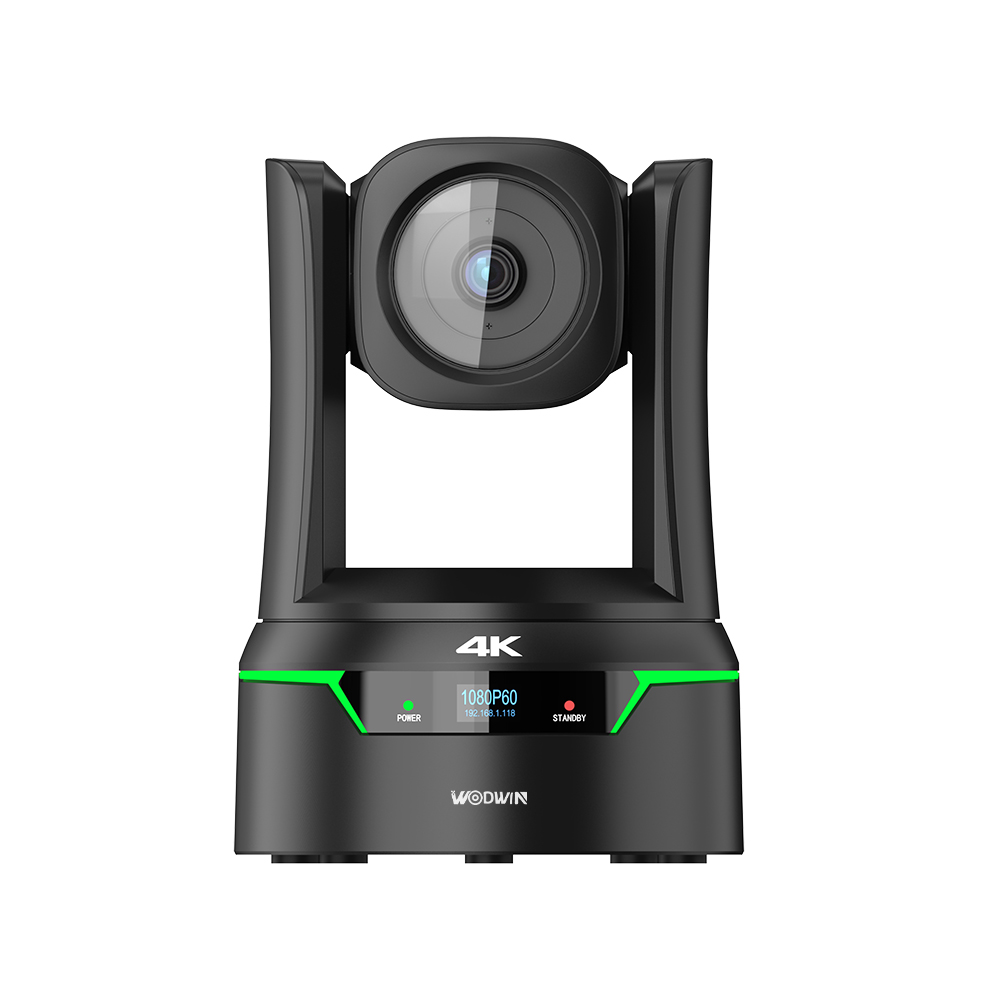

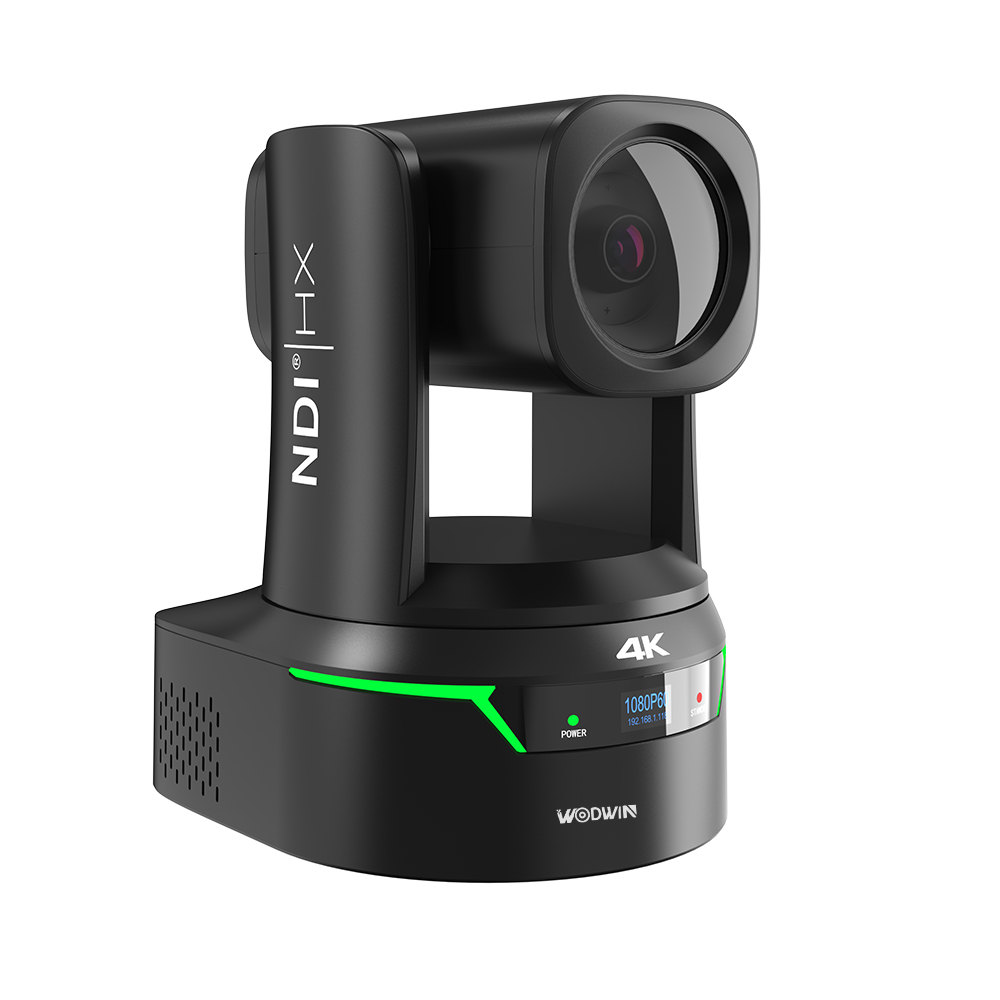

Product Model: WIN-JK75SN

NDI|HX3 4K60fps 30X PTZ CAMERA – WIN-JK75SN

WIN‑JK75SN is the new‑release 30X Zoom 4K 60fps PTZ Live Broadcasting camera from WODWIN. Furthermore, it features the latest NDI|HX3 protocol for low‑latency network streaming. UHD PTZ Camera is using a new generation of SONY 1/1.8” CMOS sensor and supports UHD 4K@60fps resolution. Besides, it delivers 30X Optical zoom which is good for larger palce. Meanwhile, it comes with rich video outputs: Such as USB3.0, HDMI, LAN and.The pan‑tilt rotation reaches PAN 348° and TILT 120° for large‑area shooting. What’s more, intelligent functions including AI tracking, Auto‑framing and Free‑D protocol support virtual‑studio workflows. This 4K Camera also adds practical Privacy Shield and OLED Display. Apart from television‑grade studio production, it works well for house‑of‑worship live streaming, large‑scale conference broadcasting, online education and sports event recording and so on.

SEND US INQUIRY

WIN-JK75SN-4K-30X-NDI-PTZ-CAMERA-FOR-LIVE-PRODUCTION

Professional Broadcast Grade 4K PTZ Camera

4K60fps PTZ Camera WIN-JK75SN is NDI®|HX3 version while WIN-JK75S is NON-NDI version Camera.

Main Feature of this WIN-JK75SN Camera is as below:

Resolution up to 4K 60fps
With Sony 1/1.8 inches CMOS Sensor
Support Latest NDI/HX3 protocol low latency
It is 30X Optical zoom, POE power over ethernet
Multiple interface with 3G-SDI, HDMI,USB3.0 and IP Port
OLED screen show IP address, Tally light, low light
AI tracking,Auto framing,Gesture RecognitionFree-D
The Pan is 342° degree, Tilt:120° degree.
Privacy Shield Function

High Quality Image 4K 60FPS, Sony CMOS Sensor

The resolution of this camera is up to 4K@60fps which is 3840*2160
Equipped with the SONY 1/1.8” CMOS sensor featuring 8.3‑megapixel resolution

WIN-JK75SN-30X-OPTICAL-ZOOM-4K-NDI-CAMERA

30X Optical Zoom Camera for Large Space

NDI 4K PTZ camera WIN-JK75SN is 30X optical zoom lens which can zoom far.

‑ Optical Zoom is 30X optical while digital zoom is 16X

‑ 59.2° horizontal field‑of‑view delivers broad panoramic coverage

Multi Interface/HDMI 2.0/USB3.0/LAN/3G-SDI

This PTZ 4K Camera WIN-JK75SN is with full and rich video outputs: HDMI2.0, LAN, USB3.0, 3G‑SDI

Which interface can output 4K image? USB3.0, HDMI2.0 and LAN can output 4K60 at the same time
Control protocols: VISCA, VISCA‑Over‑IP, PELCO‑P/D, featuring automatic protocol

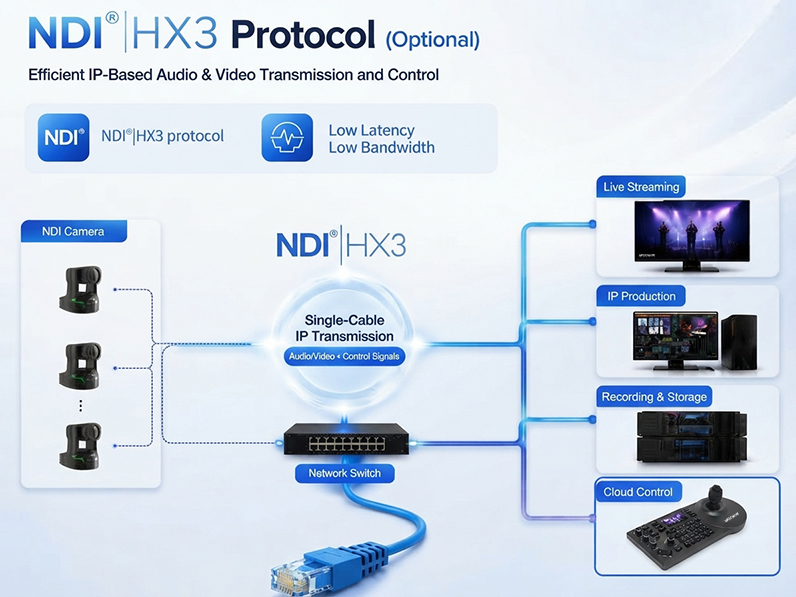

NDI®|HX3/Rich Network Protocols

If you need low latency live streaming, you can choose WIN-JK75SN which is built-in NDI®|HX3 protocol.

-This NDI solution delivers synchronized high‑definition video transmission.

-It achieves high bandwidth utilization to guarantee stable and smooth live streaming.

Beside NDI, it aslo supports multiple video‑encoding formats: YUY2, MJPG, H.264 and H.265.

Furthermore, broad network and control protocols including : SRT, RTSP, RTMP, Free‑D, VISCA, PELCO‑P/D and ONVIF are available.

Smoothly AI Tracking 4K Camera

The Camera WIN-JK75SN delivers multiple intelligent AI tracking options to simplify live production.

‑ Single‑Person Tracking: Lock onto and follow the active speaker automatically

‑ Multi‑Person Tracking: Seamlessly switch among presenters during group discussions

‑ Zone & Hybrid Tracking: Limit tracking movement inside pre‑set detection zones

‑ Gesture Recognition Control: Command the camera quickly with simple hand gestures

Intelligent Privacy Masking

The WODWIN WIN‑JK75SN features AI‑driven auto privacy masking.

After multi‑person detection, it automatically blurs faces in real‑time to safeguard sensitive information.

This function makes the camera well‑suited for medical facilities and other special‑privacy‑required applications.

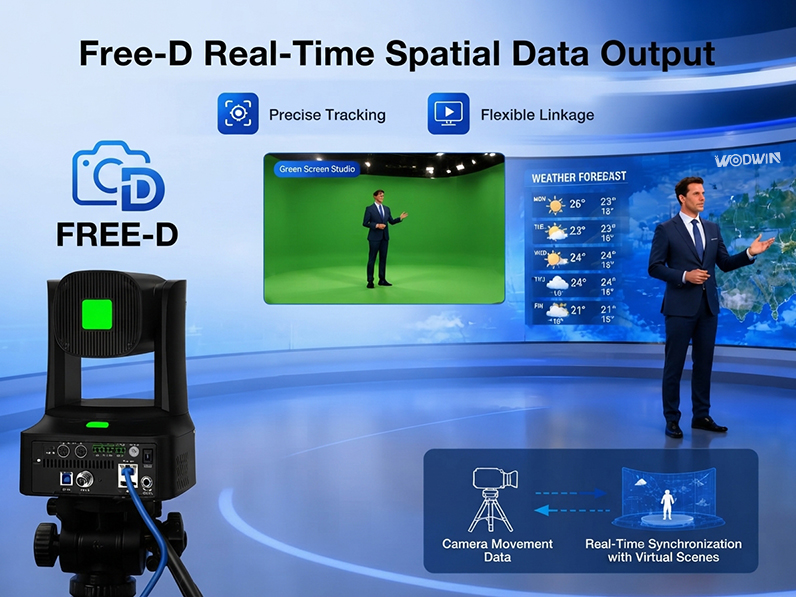

Free‑D Protocol

4K NDI PTZ Camera WIN‑JK75SN supports Free‑D real‑time spatial data output

It delivers accurate shooting‑angle synchronization for virtual‑studio and green‑screen workflows
And it provides precise tracking and flexible scene linkage, compatible with most mainstream virtual‑production software

This camera outputs real‑time spatial positioning data to enable seamless virtual‑scene integration for virtual‑studio and green‑screen live productions.

WIN-JK75SN-NDI-4K-PTZ-CAMERA-with-Gesture Control

4K PTZ Camera with AI Gesture Control

UHD PTZ camera WIN-JK75SN supports Gesture Control. It features five dedicated hand‑gesture commands:

OK Gesture – Activate AI Tracking

Open‑Palm Gesture – Deactivate AI Tracking

V‑Sign (Victory Gesture) – Switch Tracking Target

Pointing‑Finger Gesture – Zoom In

Clenched‑Fist Gesture – Zoom Out

Multi-Application

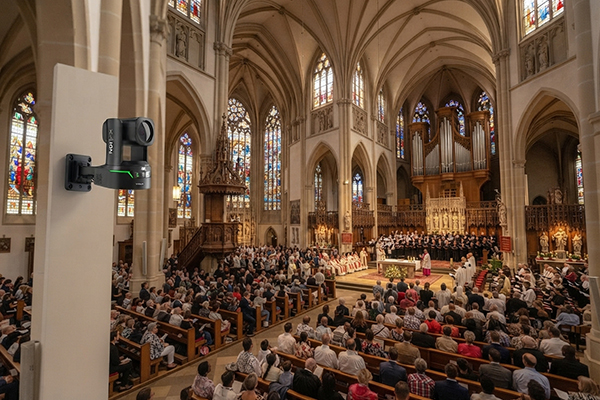

For Church

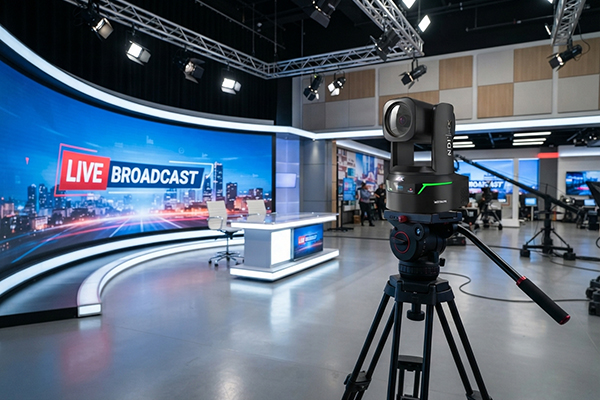

WIN-JK75SN 4K60-NDI-PTZ-Camera for broadcasting

Live Broadcasting Streaming

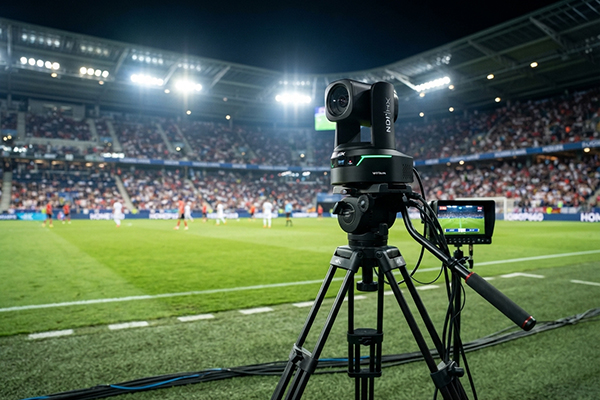

WIN-JK75SN 4K60-NDI-PTZ-Camera for Sports streaming

For Sports Live Events

TECHNICAL PARAMETERS

Camera parameters
WIN-JK75SN 30X PTZ NDI 4K BROADCAST GRADE CAMERA
Sensor		1/1.8-inch SONY CMOS sensor, approximately 8.29million effective pixels
Zoom	Optical zoom	30X
	Digital zoom	16X
Lens		f=6.91(wide)~214.64mm(tele)，F1.35~F4.6
Horizontal field of view		59°(W)~1.98°(T)
Vertical field of view		34.14°(W)~1.12°(T)
Output format	HDMI	38402160 p60/59.94/50/30/29.97/25；19201080 p60/59.94/50/30/29.97/25；1280720 p60/50；19201080 i60/59.94/50
	3G-SDI	19201080 p60/59.94/50/30/29.97/25；1280720 p60/50；1920*1080 i60/59.94/50
	USB	MJPEG: 38402160, 25601440, 19201080, 1280720, 960540, 480270, 384216, 320180, 256*144
		YUY2: 19201080, 1280720, 960540, 640360, 480270, 384216, 320180, 256144
		NV12: 19201080, 1280720, 960540, 640360, 480270, 384216, 320180, 256144
Gimbal

Preset		Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10%
Gimbal Acceleration Curve		Gentle，Standard，Swift
Horizontal rotation angle		-171°～ +171°
Vertical rotation angle		-90°～ +90°
Horizontal rotation speed		0.01°～ 180°/S
Vertical rotation speed		0.01°～ 180°/S
Image Parameters

Noise reduction		2D & 3D
Exposure		Automatic, Manual, Aperture Priority, Shutter Priority
White Balance		Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature
Low light		0.1Lux
Anti-flicker		Off,50Hz,60Hz
Focusing method		Automatic, Manual
Gamma		Standard, Linear, Pattern, Custom
Inversion/Image Freeze		Support
Backlight compensation		Support
Flip/Mirror		Support
Defog		Support
Shutter		1/50S ～ 1/10000S
S/N Ratio		≥50dB
Online streaming

Video encoding format		H.264, H.265,MJPEG
Rate Control		Variable bit rate, constant bit rate
Bitrate		Stream0 38402160, 19201080, 1280*720
		Stream1 640*360
		Stream2 19201080, 1280720
Supported Protocol		TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, VISCA Over IP, Free D，NDI（optional）
Audio information

Compression Standard		AAC
Audio Bitrate		128kbps
AI composition

Smart Tracking		Single-person tracking, multi-person tracking, Zone tracking, hybrid tracking, gesture recognition
Gesture Recognition		AI On, AI Off, Switch Target, Zoom In, Zoom Out
Composition size		Half body / Full body
Composition mode		Custom, Center, Left, Right
Composition position		Current position, preset position, initial position
Pan Lock		Support(Only Single-person tracking)
Tilt Lock		Support(Only Single-person tracking)
Zoom Lock		Support(Only Single-person tracking)

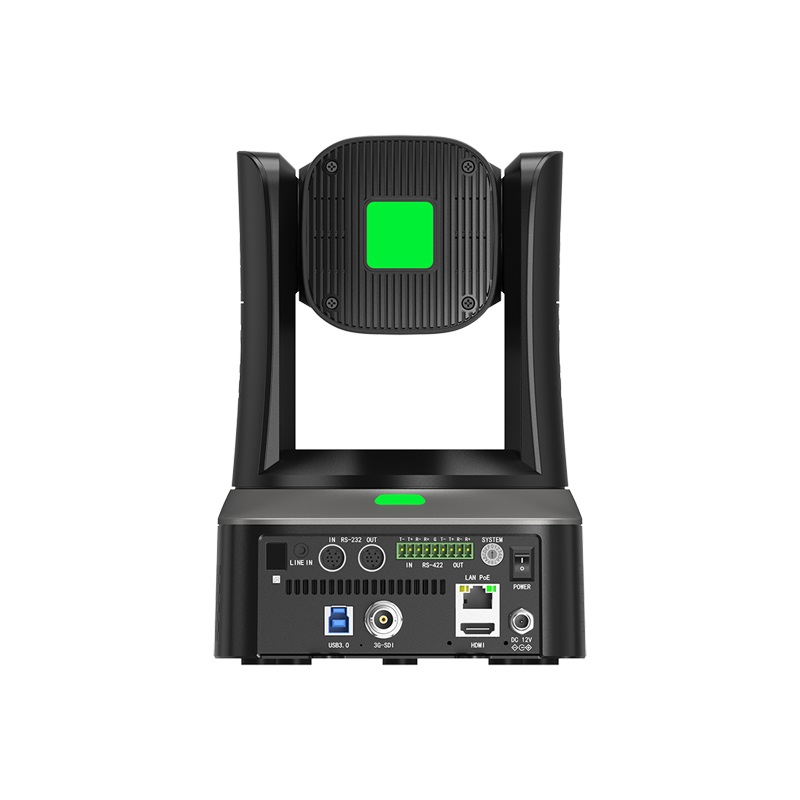

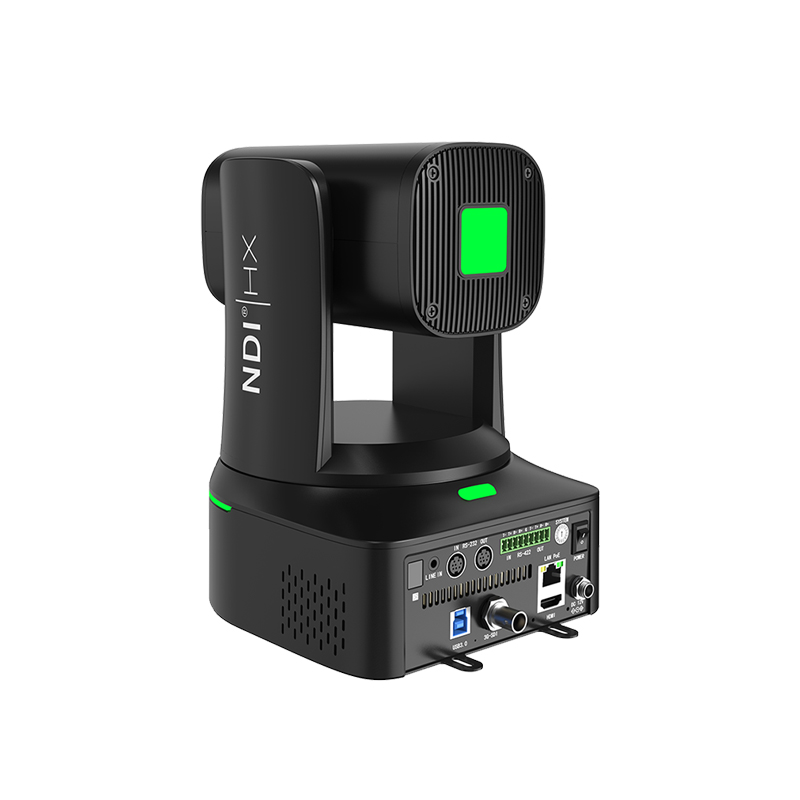

Input/Output

HDMI port		HDMI: Version 2.0 *1 channel
USB port		USB 3.0, Type-B port *1 channel
SDI port		3G-SDI*1 channel
Communication Interface		RS422:9 Phoenix connector,maximum distance 1200 meters，VISCA/Pelco-D/Pprotocol 1 channel； RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/P protocol 1 channel
Network Interface		RJ45: 1000M adaptive Ethernet port ×1 channel (Supports PoE+ (IEEE 802.3at))
Audio Interface		3.5mm Line In audio port ×1 channel
Power connector		IEC 60130-10 Type A
Basic Parameters

Input voltage		DC 12V
Input current		Up to 1.5A
Operating Temperature		0～40℃
Storage Temperature		-10～60℃
Power consumption		Up to 18W
Color		Black
Specifications		158191208mm
Weight		1.9KG
Accessory List		DC12V power adapter, IR remote control, User manual, HDMI cable (optional), HDMI bracket, USB 3.0 video cable, wall mount/ceiling mount bracket (choose one of the two)
